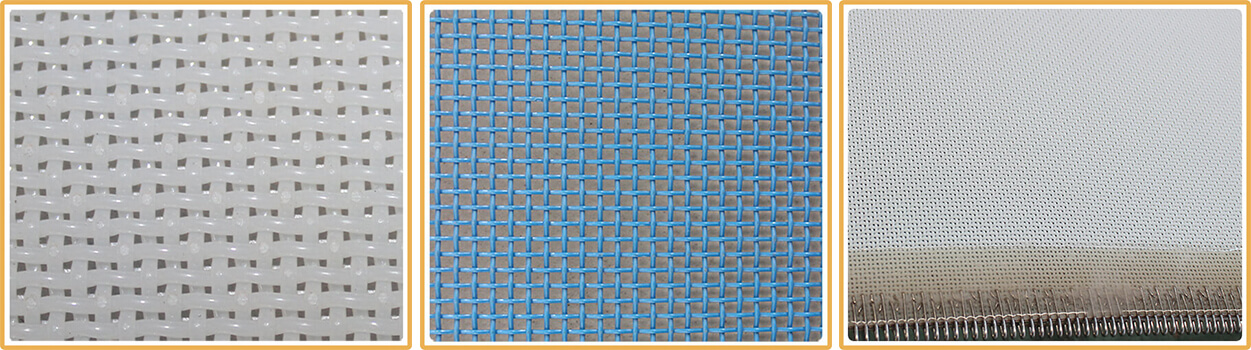

Linear Screen Cloth
Hightop’s Linear screen cloth is made of polyester material with two different weaving type: 2-shed and 3-shed that customers can choose from. The screen cloth is ideal for several industries especially in the paper pulp, packing, liner cardboard, food industry and mining industry.
- Made of polyester material
- 2-shed and 3 shed weaving type
- 2 colors: white or blue
- Apertures: 300 µ – 600 µ – 700 µ – 800 µ – 1000 µ – 1200 µ – 1500 µ – 2000µ(Micron)
Benefits of Linear Screen Cloth
- Low maintenance cost
- Lower consumption of power
- No vibrations and low noise level
| Weaving series & Types | Model of Fabrics | Wire Diameter (mm) | Density (wire/cm) | Strength (N/cm) | Air Permeability (CFM) | ||
| Warp | Weft | Warp | Weft | Area of Surface | |||
| Two-shed | 03902 | 0.9 | 0.9 | 3.3 | 3 | ≥1650 | 1250 |
| 05802 | 0.9 | 0.8 | 0.5 | 0.2 | ≥1700 | 990 | |
| 06802 | 0.7 | 0.8 | 6 | 6 | ≥1650 | 725 | |
| 06702 | 0.7 | 0.7 | 6.3 | 6.3 | ≥1800 | 688 | |
| 09452 | 0.45 | 0.45 | 10 | 8.6 | ≥1900 | 974 | |
| 12502 | 0.5 | 0.5 | 13.6 | 8.2 | ≥1900 | 407 | |
| Three-shed | 08603 | 0.5 | 0.6 | 9.4 | 9 | ≥1950 | 563 |
| 07903 | 0.7 | 0.9 | 7.7 | 6.7 | ≥1950 | 400 | |
