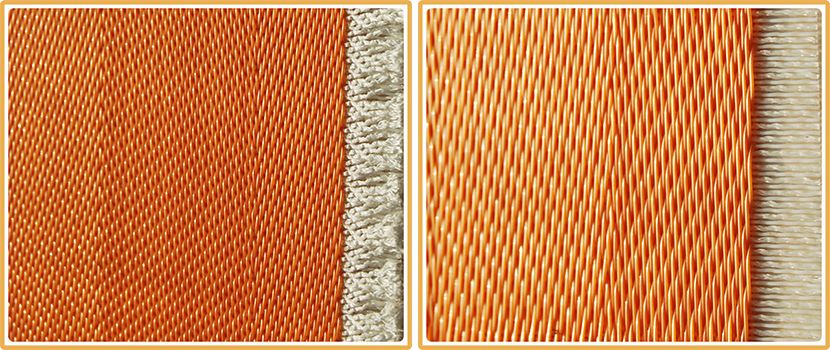

Hightop’s Vacuum Filter Belt is optimized to meet even the most demanding needs of various industries including the food, pharmaceutical, chemical, mining and chemical companies.
Vacuum Filter Belt Features:
- Stable running
- High filtration rate
- Can be easily peel off from the filter cake
- Do not easily wrinkle
- Matches with vacuum rubber, horizontal vacuum, vacuum drum belt filter and vertical filter press
| Model of Fabrics | Wire Diameter (mm) | Density (wire/cm) | Strength (N/cm) Area of Surface | Air Permeability (CFM) | ||
| Warp | Weft | Warp | Weft | |||
| C28508F | 0.5 | 0.5 | 30 | 20 | ≥1450 | 135 |
| C28508M | 0.5 | 0.5 | 28 | 21 | ≥1390 | 45 |
