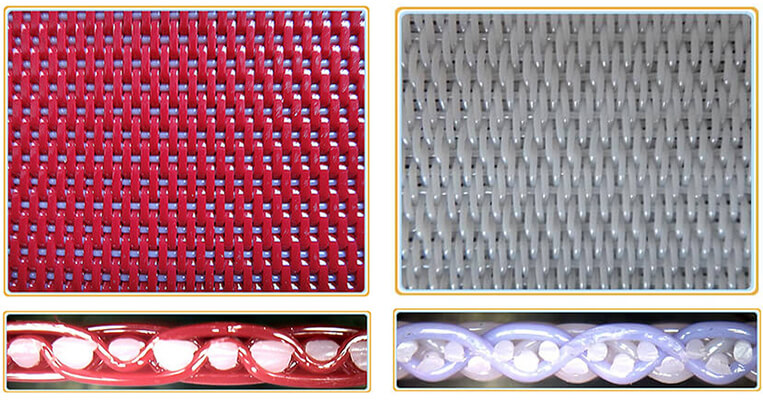

When it comes to cost efficiency and energy saving solutions, the right product matters. That is why Hightop offers a wide range of Woven Dryer Fabric. The fabric type is divided into several types: 1 1/2, double layer, flat wire, flat double warp and special dryer fabric. Depending on the customer’s needs and requirements, some fabrics are designed for high temperature and humidity, runnability, prevention of contamination and resistance to hydrolysis.
Features:
- Use would result to excellent printability.
- Efficient in drying

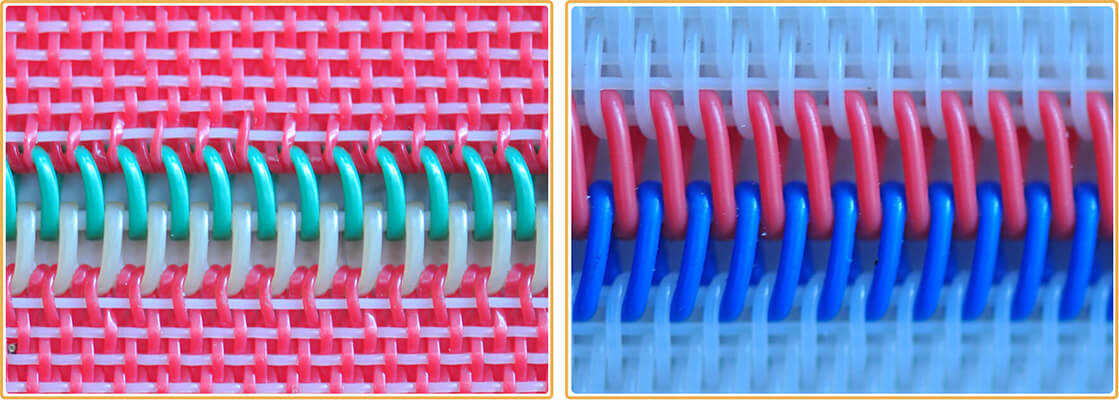

- Non-marking seam
- Durable
- Structural stability
- Excellent heat dissipation
Applications
- Card board
- Cigarette
- Copy tissue
- Newsprint
- Carbonless paper
- Copy print
| Model of Fabrics | Wire Diameter (mm) | Density (wire/cm) | Strength (N/cm) | Air Permeability (CFM) | |||
| Warp | Weft | Warp | Weft | Area of Surface | Joint | ||
| 24504 | 0.5 | 0.5 | 24.6 | 11.2 | ≥2000 | ≥900 | 690 |
| 4106-D (24504 design) | 0.62 x 0.37 | 0.5 | 19 | 13 | ≥2000 | ≥800 | 601 |
| 24504-A | 0.5 | 0.5 | 24.8 | 13.2 | ≥2380 | ≥900 | 410 |
| 4106-D | 0.62 x 0.37 | 0.50/0.50 | 20.6 | 15.5 | ≥2000 | ≥800 | 200 |
| 4106-D | 0.62 x 0.37 | 0.68/0.68 | 20 | 9.5 | ≥2000 | ≥800 | 481 |
| SJ16904 | 0.42 x 1.06 | 0.90/0.68 | 16 | 6.9 | ≥2400 | ≥900 | 150 |
